Steam trap TBH82

  • SCCV system
  • Suitable for condensate recovery
  • Horizontal installation
  • Vertical installation

  • Completely closed

    The temperature control trap enables adjustable subcooling of the condensate. This maintains a specific condensate level in the trap. The mechanism is 100% leak-proof, which effectively prevents steam loss during operation.

  • Suitable for high pressures, high temperatures and superheated steam

  • Outstanding durability

    The MIYAWAKI SCCV system (Self Closing and Centering Valve) is characterized by a significantly longer service life thanks to the reduced closing forces.
    The freely rotating valve always sits optimally in the valve guide, even under the extreme conditions that prevail in high-pressure applications, as it is centered and guided by the condensate flow. This design significantly reduces stress and therefore wear on the valve components.

  • Fast commissioning

    Discharges the cold condensate and cold air quickly.

  • Energy savings

    Controlling the temperature of the discharged condensate ensures significant energy savings.

  • Low operating noise and very low formation of flash steam

Typical applications

Suitable for ultra-high pressure and high temperature applications such as superheated steam pipes, turbine heads and other similar applications.

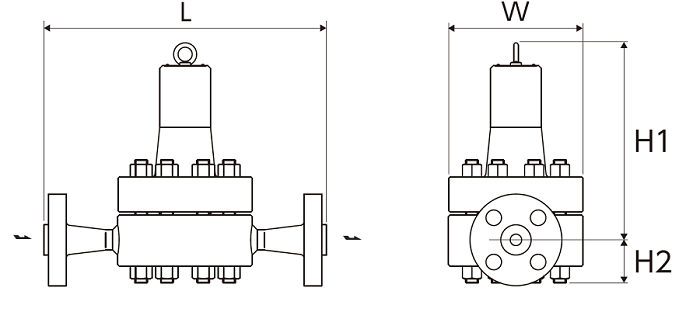

TBH82-150F (flange)

Nominal width Dimensions (mm) Weight
L H1 H2 W (kg)
1/2″ 400 282 62 190 42,0
3/4″ 43,0
1″ 46,0

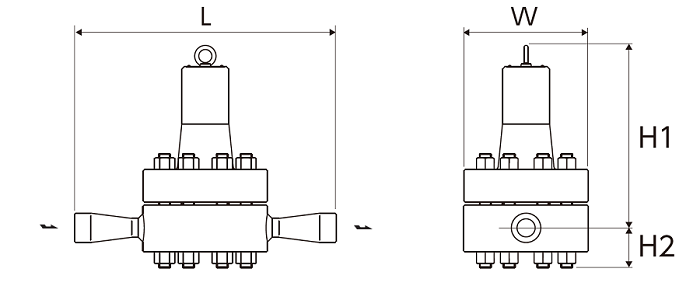

TBH82-150W (welding socket)

Nominal width Dimensions (mm) Weight
L H1 H2 W (kg)
1/2″ 400 282 62 190 37,0
3/4″
1″

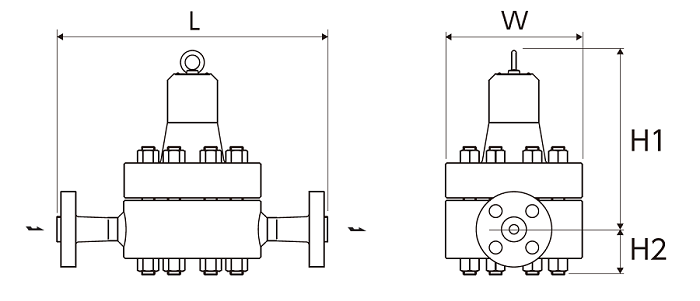

TBH82-200F (flange)

Nominal width Dimensions (mm) Weight
L H1 H2 W (kg)
1/2″ 400 282 62 190 37,0
3/4″
1″

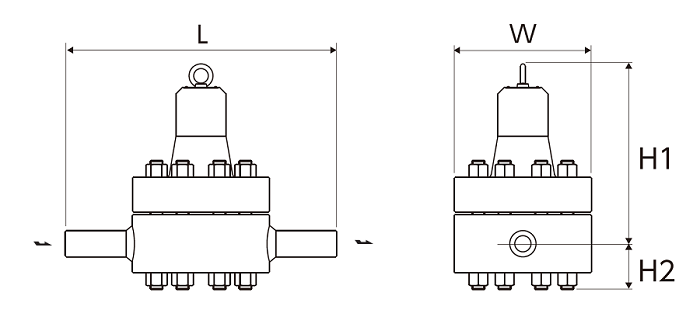

TBH82-200W (welding socket)

Nominal width Dimensions (mm) Weight
L H1 H2 W (kg)
1/2″ 465 310 75 235 68,0
3/4″
1″
Model Connection Max.
Operating pressure		 Max.
Differential pressure		 Max.
Operating temperature		 Setting range Default setting Housing material
Type Nominal diameter (bar) (bar) (℃) (℃) (℃)
TBH82-150F Flange
FF,RF		 1/2″ 150 150 550 100 – 300 250
(at 105 bar)		 Cast steel
WC9
3/4″
1″
TBH82-150W Welding socket
SW		 1/2″
3/4″
1″
TBH82-200F Flange
FF,RF		 1/2″ 200 200 100 – 320 270
(at 150 bar)
3/4″
1″
TBH82-200W Welding socket
SW		 1/2″
3/4″
1″

* Available flange standards: ASME/JPI 1500 lb, 2500 lb, DIN PN160, 250
* Welding socket standards: (TBH82-150W) JIS sch 160 ASME/JPI 2500lb
(TBH82-200W) JIS sch 160 JPI 2500lb ASME 4500lb

● Max. permissible pressure (PMA):
TBH82-150: 250 bar (at 520 ℃)
TBH82-200: 250 bar (538 ℃)
● Max. permissible temperature (TMA):
TBH82-150: 593 ℃ (at 59 bar)
TBH82-200: 593 ℃ (at 73 bar)
● Min. Operating differential pressure (⊿PMN): 20 bar ⊿PMN is the minimum operating differential pressure between the inlet and outlet of the steam trap.
● If there are no special instructions for the set temperature, the product is set to the above factory default setting for shipping.
The set temperature must be at least 30 ℃ lower than the saturation temperature for the vapor pressure used.
* The TBH82 housing can also be manufactured from a forged chrome-molybdenum steel alloy (A182 F22 and A182 F91).

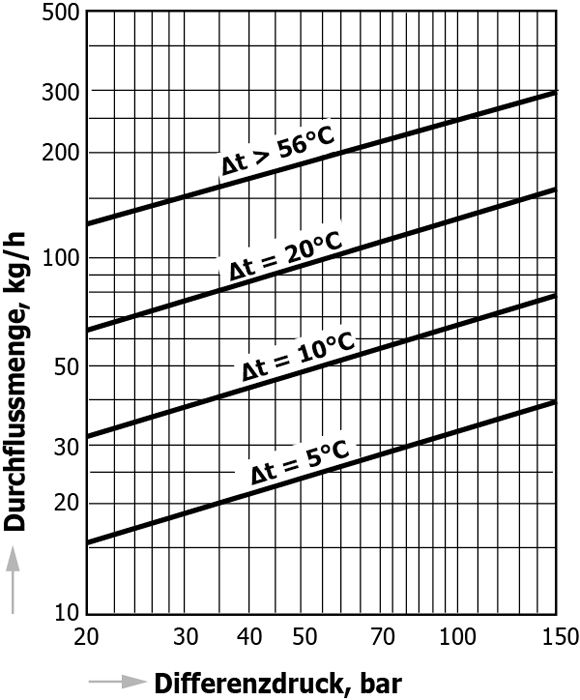

TBH82-105

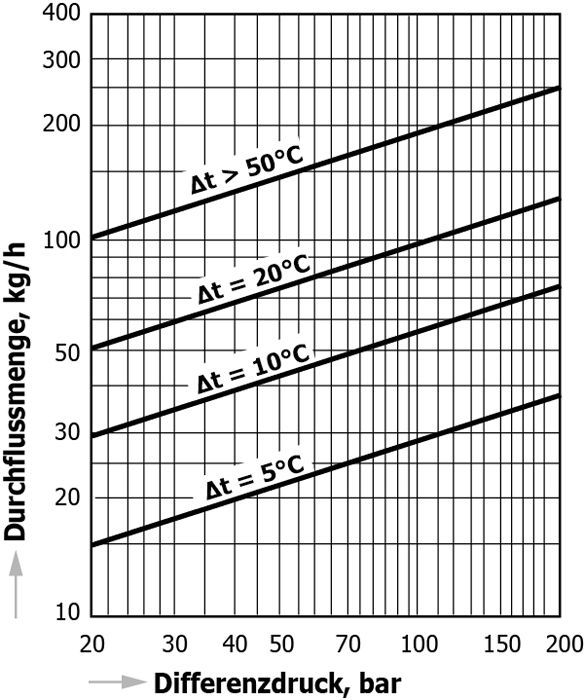

TBH82-200

● ⊿t is the difference between the temperature of a temperature control trap when the valve is first opened and the temperature of the condensate. The temperature difference (⊿t) at the first flow of air is large and indicates that the flow rate will also increase.
