Steam trap G3N

  • Suitable for condensate recovery
  • Horizontal installation
  • Automatic venting
  • Option
    – Customized flange

  • Fast commissioning

    Discharges cold air and cold condensate automatically. The membrane capsule deaerator is controlled by the saturation temperature and prevents air and steam congestion.

  • Condensate recovery

    With its high back pressure tolerance, this model is suitable for condensate return.

  • High discharge capacity

    An equalizing valve with two valve openings offers a high flow capacity compared to models with only one opening.

Typical applications

Suitable for use in large heat exchangers in various industries, e.g. in industrial plants, food processing equipment, dyeing/cleaning equipment and air conditioning systems.

Flange

Nominal width Dimensions (mm) Weight (kg)
L H1 H2 W
1 1/2″ 265 140 95 22,0

* Available flange standards: JIS 10K, 16K

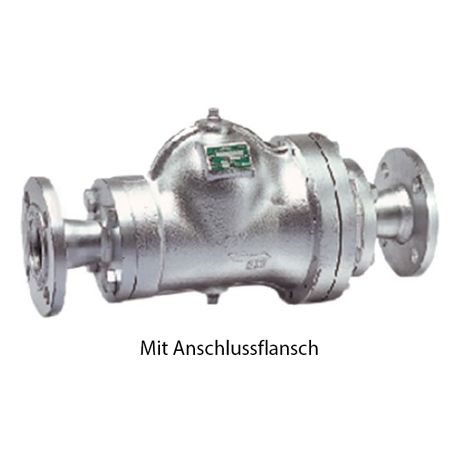

With connection flange

Nominal width Flange standards Dimensions (mm) Weight (kg)
L H1 H2 W
1″ JIS 10K, 16K, 20K 427 140 95 198 27,0
1″ ASME/JPI 150lb, 300lb 437 27,5
1″ DIN PN16 (DN25) 437 27,5
1 1/4″ JIS 10K, 16K, 20K 427 27,5
1 1/4″ ASME/JPI 150lb, 300lb 437 28,0
1 1/4″ DIN PN16 (DN32) 437 28,0
1 1/2″ JIS 10K, 16K, 20K 437 28,0
1 1/2″ ASME/JPI 150lb, 300lb 437 30,0
1 1/2″ DIN PN16 (DN40) 437 30,0
2″ JIS 10K, 16K, 20K 457 29,0
2″ ASME/JPI 150lb, 300lb 467 31,0
2″ DIN PN16 (DN50) 467 31,0
2 1/2″ JIS 10K, 16K, 20K 487 36,0
2 1/2″ ASME/JPI 150lb, 300lb 497 36,0
2 1/2″ DIN PN16 (DN65) 497 36,0
3″ JIS 10K, 16K, 20K 487 41,0
3″ ASME/JPI 150lb, 300lb 497 41,0
3″ DIN PN16 (DN80) 497 41,0

* Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K
* Customized dimensions on request.

Model Connection Max.
Operating pressure		 Max. differential pressure Max.
Operating temperature		 Housing material
Type Nominal diameter (bar) (bar) (℃)
G3N-10 Flange
FF*1		 1 1/2″ 10 10 235 Ductile iron
FCD450
G3N-16 16 16
G3N-10R Flange
FF,RF*²		 1″・1 1/4″・1 1/2″・2″・2 1/2″・3″ 10 10
G3N-16R 1″・1 1/4″・1 1/2″・2″・2 1/2″・3″ 16 16

*1 Available flange standards: JIS 10K, 16K
*2 Available flange standards: ASME/JPI 150lb, 300lb, DIN PN16, JIS 10K, 16K, 20K

● This product uses a balancing valve system with two connections. If the actual amount of condensate is significantly
less than the discharge capacity of the product, there may be a steam leak.

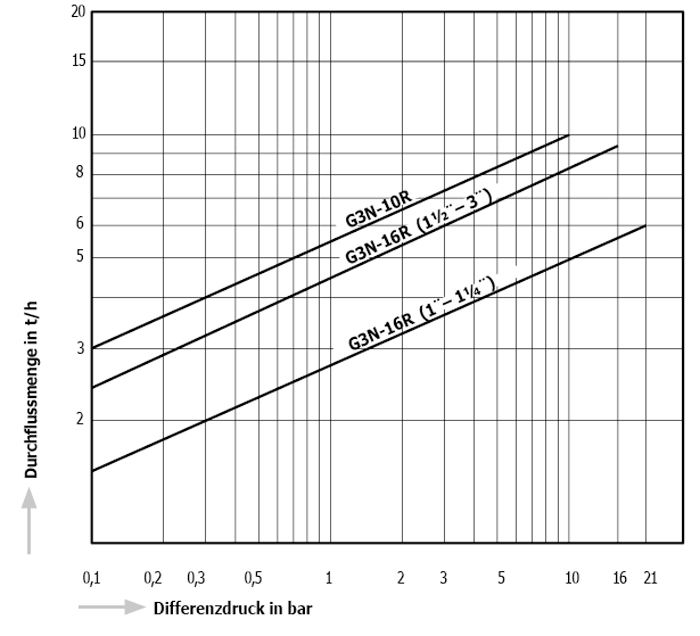

● The diagram of the drain line shows the flow rate for condensate with a temperature of 6 ℃ (43℉) below the saturation temperature.
