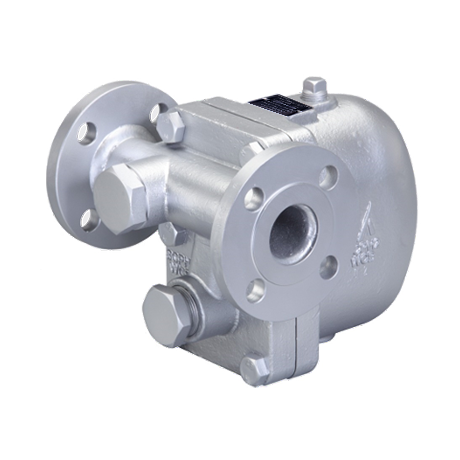

Steam trap GH40D

  • Suitable for condensate recovery
  • Horizontal installation
  • Automatic venting
  • option
    – ASTM material available

  • Fast commissioning

    Discharges cold air and cold condensate automatically.

  • Suitable for steam processes with medium to high volumes

    Independent adjustment of the valve opening degree to the amount of condensate to maximize the heat exchange capacity.

  • Condensate recovery

    With its high back pressure tolerance, this model is suitable for condensate return.

  • Easy maintenance

    This model can also be repaired built-in and is therefore quick and easy to maintain.

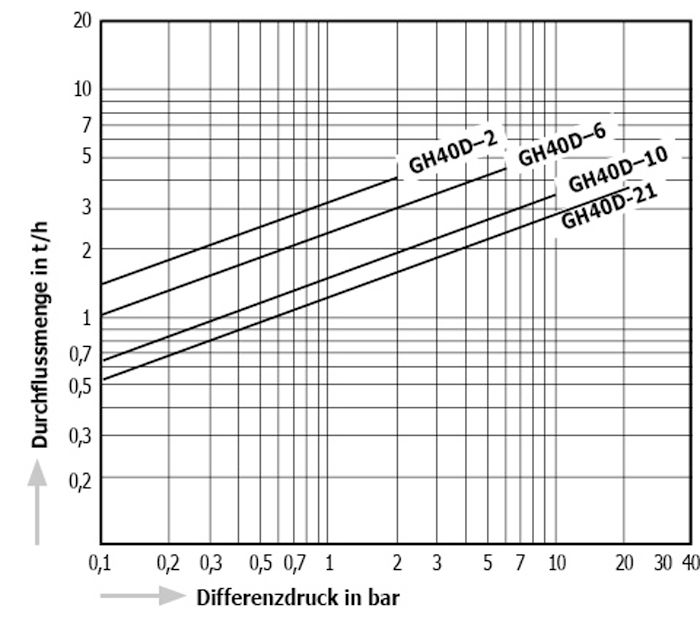

  • High discharge capacity

    An equalizing valve with two valve openings offers a high flow capacity compared to models with only one opening.

Typical applications

Suitable for use in industrial plants, food processing plants and dyeing/cleaning equipment.

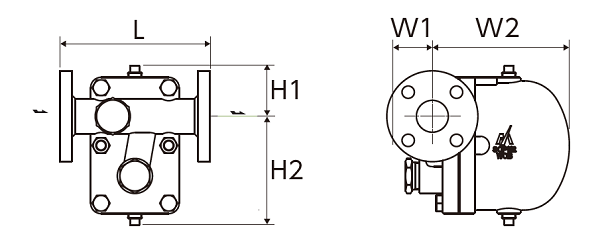

Flange FF, RF

Nominal width Flange standards Dimensions (mm) Weight
L H1 H2 W1 W2 (kg)
1 1/2″ JIS (FF,RF) 10K,16K 20K 230 80 170 60 210 24,0
JIS (RF) 30K 27,0
40K 240
DIN PN40 230 24,0
ASME/JPI (RF) 150lb 300lb
600lb 250 27,0
2″ JIS (FF,RF) 10K,16K 20K 230 24,0
JIS (RF) 30K 240 27,0
40K 250
DIN PN50 230 24,0
ASME/JPI (RF) 150lb 300lb
600lb 270 27,0

* Available flange standards: ASME/JPI 150lb, 300lb, 600lb, DIN PN40, JIS 10K, 16K, 20K, 30K, 40K
* Customized dimensions on request.

Welding socket

Nominal width Dimensions (mm) Weight
L H1 H2 W1 W2 (kg)
1 1/2″ 250 80 170 60 210 19,0
2″ 260
Model Connection Max. Operating pressure (bar) Max. Differential pressure (bar) Max. Operating temperature (℃) Venting type Housing material
Type Nominal size
GH40D-2F Flange FF, RF 1 1/2″ 2 2 220 Membrane Cast steel
SCPH2/WCB
2″
GH40D-6F 1 1/2″ 6 6
2″
GH40D-10F 1 1/2″ 10 10
2″
GH40D-21F 1 1/2″ 21 21
2″
GH40D-2W Welding socket 1 1/2″ 2 2
2″
GH40D-6W 1 1/2″ 6 6
2″
GH40D-10W 1 1/2″ 10 10
2″
GH40D-21W 1 1/2″ 21 21
2″

* Available flange standards: ASME/JPI 150lb, 300lb, 600lb, DIN PN40, JIS 10K, 16K, 20K, 30K, 40K

● Max. permissible pressure (PMA): 40 bar
● Max. permissible temperature (TMA): 400 ℃
● Max. Back pressure in operation (PMOB): 90 % of the pressure on the inlet side
* ASTM material (WCB) on request.

● This product uses a balancing valve system with two connections. If the actual amount of condensate is significantly less than the drainage capacity of the product, there may be a
