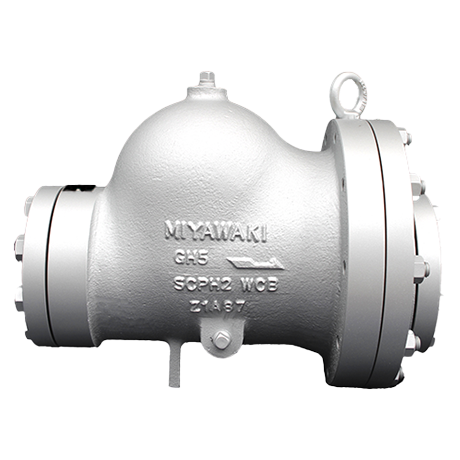

Steam trap GH5
- Suitable for condensate recovery
- Horizontal installation
- Automatic venting
-
- Option
- – Customized flange
- – ASTM material available
-
Fast commissioning
Discharges cold air and cold condensate automatically. The membrane capsule deaerator is controlled by the saturation temperature and prevents air and steam congestion.
-
Condensate recovery
With its high back pressure tolerance, this model is suitable for condensate return.
-
High discharge capacity
An equalizing valve with two valve openings offers a high flow capacity compared to models with only one opening.
Typical applications
Suitable for use in large heat exchangers in various industries, e.g. in industrial plants, food processing equipment, dyeing/cleaning equipment and air conditioning systems.

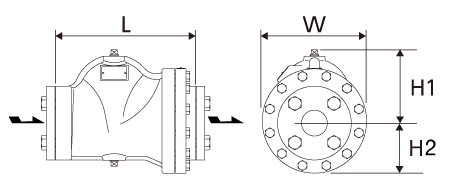

Flange
| Nominal width | Dimensions (mm) | Weight (kg) | |||
|---|---|---|---|---|---|
| L | H1 | H2 | W | (kg) | |
| 2″ | 340 | 200 | 115 | 270 | 50,0 |
* Available flange standards: ASME/JPI 300lb

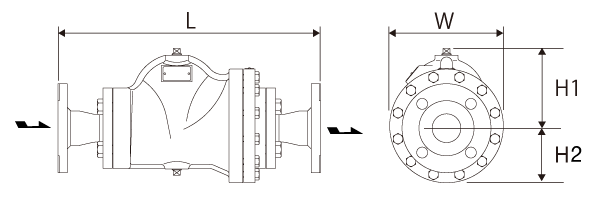

With connection flange
| Nominal diameter | Flange standards | L Dimensions (mm) | H1 | H2 | W | Weight (kg) |
|---|---|---|---|---|---|---|
| 2″ | JIS 10K,16K,20K | 550 | 200 | 115 | 270 | 63,0 |
| ASME/JPI 150lb,300lb | ||||||
| DIN PN16 (DN50) | ||||||
| 2 1/2″ | JIS 10K,16K,20K | 570 | 63,0 | |||
| ASME/JPI 150lb,300lb | 580 | 66,0 | ||||
| DIN PN16 (DN65) | ||||||
| 3″ | JIS 10K,16K,20K | 570 | 66,0 | |||
| ASME/JPI 150lb,300lb | 580 | 70,0 | ||||
| DIN PN16 (DN80) | ||||||
| 4″ | JIS 10K,16K,20K | 600 | 70,0 | |||
| ASME/JPI 150lb,300lb | 620 | 80,0 | ||||
| DIN PN16 (DN100) |
* Available flange standards: ASME/JPI 150lb, 300lb, DIN PN40, JIS 10K, 16K, 20K
* Customized dimensions on request.
| Model | Type | Nominal diameter | Max. Operating pressure (bar) | Max. Differential pressure (bar) | Max. Operating temperature (℃) | Housing material |
|---|---|---|---|---|---|---|
| GH5-10 | Flange RF*1 | 2″ | 10 | 10 | 400 | Cast steel SCPH2/WCB |
| GH5-16 | 16 | 16 | ||||
| GH5-21 | 21 | 21 | ||||
| GH5-10R | Flange FF,RF*2 | 2″ 2 1/2″ 3″ 4″ | 10 | 10 | ||
| GH5-16R | 16 | 16 | ||||
| GH5-21R | 21 | 21 |
*1 Available flange standards: ASME/JPI 300lb
*2 Available flange standards: ASME/JPI 150lb, 300lb, DIN PN40, JIS 10K, 16K, 20K
● This product uses a balancing valve system with two connections. If the actual amount of condensate is significantly less than the discharge capacity of the product, there may be a steam leak.

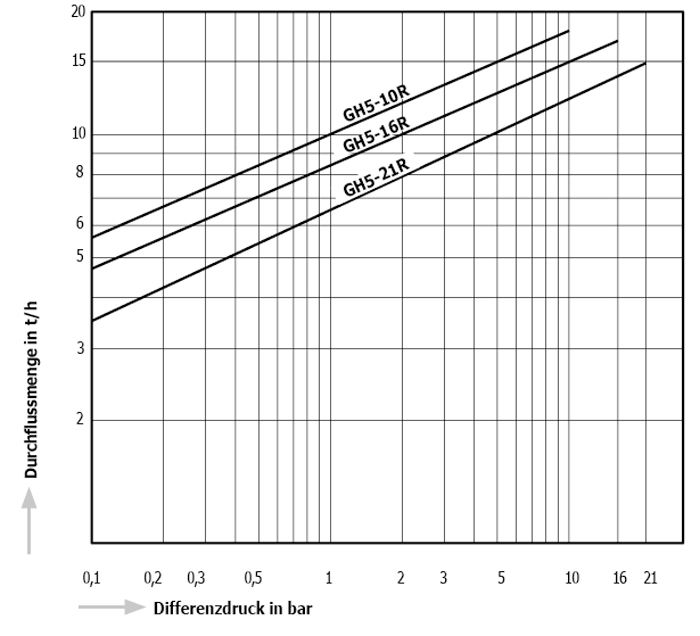

● The diagram of the drain line shows the flow rate for condensate with a temperature of 6 ℃ (11 ℉) below the saturation temperature.
