Steam trap GH50

  • Suitable for condensate recovery
  • Horizontal installation
  • Automatic venting
  • option
    – ASTM material available

  • Fast commissioning

    Discharges cold air and cold condensate automatically.

  • Suitable for steam processes with medium to high volumes

    Independent adjustment of the valve opening degree to the amount of condensate to maximize the heat exchange capacity.

  • Condensate recovery

    With its high back pressure tolerance, this model is suitable for condensate return.

  • Easy maintenance

    This model can also be repaired built-in and is therefore quick and easy to maintain.

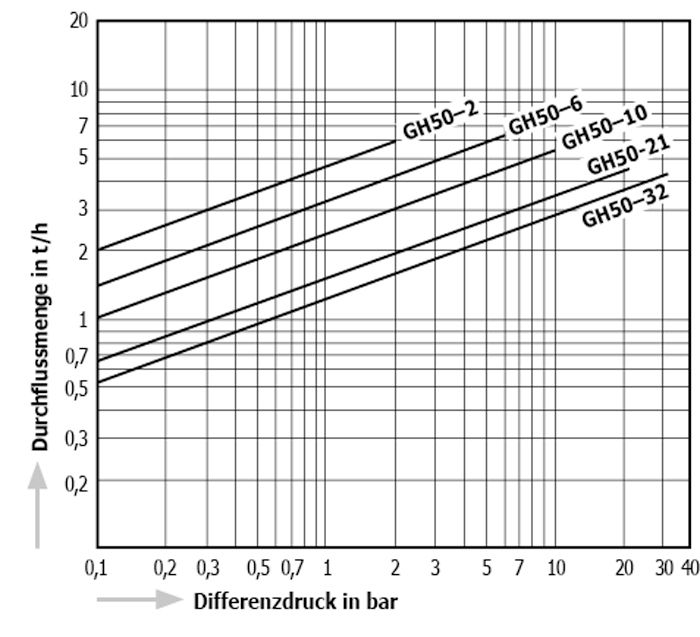

  • High discharge capacity

    An equalizing valve with two valve openings offers a high flow capacity compared to models with only one opening.

Typical applications

Suitable for use in industrial plants, food processing plants and dyeing/cleaning equipment.

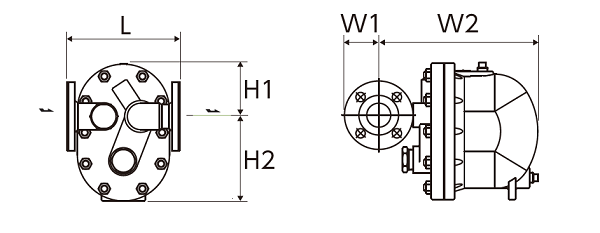

Flange

Nominal diameter Flange standards L (mm) H1 (mm) H2 (mm) W1 (mm) W2 (mm) Weight (kg)
1 1/2″ JIS (FF,RF) 230 107 173 60 330 37,0
JIS (RF) 30K 250 40,0
40K 260
DIN PN40 230 37,0
ASME/JPI (RF) 150lb, 300lb
600lb 270 40,0
2″ JIS (FF,RF) 230 37,0
JIS (RF) 30K 260 40,0
40K 270
DIN PN40 230 37,0
ASME/JPI (RF) 150lb, 300lb
600lb 290 40,0

* Available flange standards: ASME/JPI 150lb, 300lb, 600lb, DIN PN40, JIS 10K, 16K, 20K, 30K, 40K
*Customized dimensions on request.

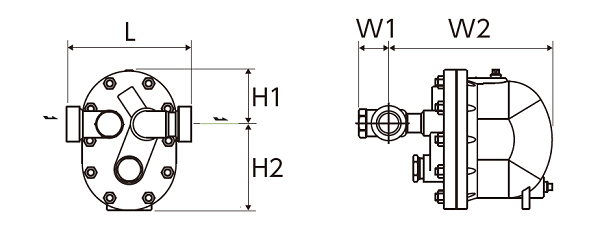

Welding socket

Nominal diameter L (mm) H1 (mm) H2 (mm) W1 (mm) W2 (mm) Weight (kg)
1 1/2″ 250 107 173 60 330 32,0
2″ 260
Model Connection Max. operating pressure Max. differential pressure Max. Operating temperature Venting type Housing material
Type Nominal diameter (bar) (bar) (℃)
GH50-2F Flange FF, RF* 1 1/2″ 2 2 400 Bimetal Cast steel SCPH2/WCB
2″
GH50-6F 1 1/2″ 6 6
2″
GH50-10F 1 1/2″ 10 10
2″
GH50-21F 1 1/2″ 21 21
2″
GH50-32F 1 1/2″ 32 32
2″
GH50-2W Welding socket 1 1/2″ 2 2
2″
GH50-6W 1 1/2″ 6 6
2″
GH50-10W 1 1/2″ 10 10
2″
GH50-21W 1 1/2″ 21 21
2″
GH50-32W 1 1/2″ 32 32
2″

* Available flange standards: ASME/JPI 150lb, 300lb, 600lb, DIN PN40, JIS 10K, 16K, 20K, 30K, 40K

● Max. permissible pressure (PMA): 40 bar
● Max. permissible temperature (TMA): 400 ℃
● Max. Back pressure during operation (PMOB): 90 % of the pressure on the inlet side

● This product uses a balancing valve system with two connections. If the actual amount of condensate
is significantly less than the discharge capacity of the product, there may be a steam leak.
