Steam trap DC2R (for sterilizers)

  • Stainless steel
  • option
    – ASTM material available

  • No condensate residue

    Integrated thermocouple closes at 5 ℃ (9 ℉) below the saturation temperature.
    When the appliance is switched off, no condensation remains in the cover at the bottom of the housing, which prevents the build-up of bacteria.

  • Stainless steel

    The housing and main components of the appliance are made of stainless steel, which gives it excellent corrosion resistance.

  • Compact design

    Can be installed in small spaces.

  • Easy maintenance

    Easy maintenance and inspection due to low number of components.

Typical applications

Suitable for industrial sterilizers.

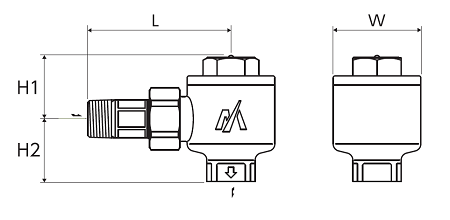

Nominal width Dimensions (mm) Weight
L H1 H2 W (kg)
1/2″ 80 35 35 49 0,7
Model Connection Max.
Operating pressure		 Max.
Differential pressure		 Max.
Operating temperature		 Opening temperature Housing material
Type Nominal diameter (bar) (bar) (℃) (℃)
DC2R-16H Inlet:
External thread (R)
Outlet:
Internal thread (Rc)		 1/2″ 16 16 220 5℃ at
saturation-
temperature		 Cast stainless steel
SCS13A/CF8

● Max. permissible pressure (PMA): 16 bar (at 220 ℃)
PMA is the design pressure of pressure-resistant parts (housing).

● Max. permissible temperature (TMA): 220 ℃ (at 16 bar)
TMA is the design temperature of the main unit (housing).

* Also available without cover (DC2-16H).

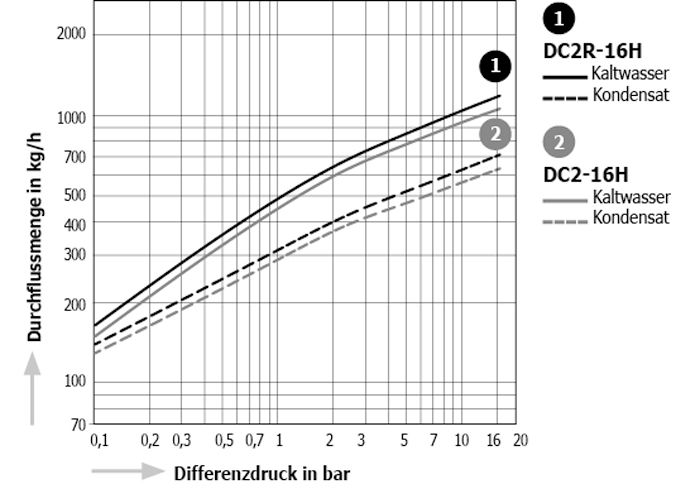

The specified condensate flow rate applies at a condensate temperature of approx. 10 ℃ below the saturation temperature.
