Steam trap ESH8N

Properties

• No condensate build-up on the primary side


  Periodic or continuous condensate drainage, depending on the amount of condensate, ensures that the condensate does not accumulate on the primary side.

• Outstanding durability


  The SCCV system valve and the robust lever, as well as the internal components made of stainless steel, ensure outstanding durability of the steam trap.

• Easy maintenance


  This model can also be repaired built-in and is therefore quick and easy to maintain.

• Condensate recovery

  With its high back pressure tolerance, this model is suitable for condensate return at a pressure of up to 90 % of the inlet pressure.

• Completely closed


  The double steam separation mechanism (channel with U-profile and inverted bucket float) ensures reliable steam separation and guarantees the tightness of the steam trap.

• No vapor or air entrapment


  Thanks to a small ventilation opening in the upper part of the bell float, this model does not trap steam or air.

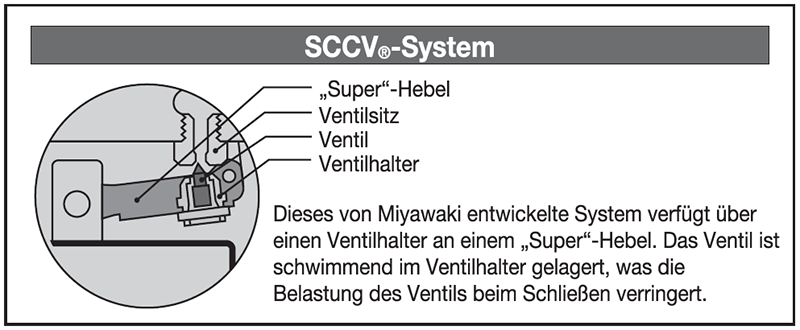

* SCCV system” is the abbreviation for “Self Closing and Centering Valve System”.

Typical applications

• Suitable for use in a wide range of sectors such as agriculture, food production, dyeing, cleaning and air conditioning.
